Low-Key.MK1 – Body parts

Current status: I have printed the skeleton part of the body out of 1.75mm Iron Grey PLA. The middle part of the skeleton will hold all the electronics. Once i figured out which hardware i want to include in the robot, i will have to figure out how to puzzle it all in.

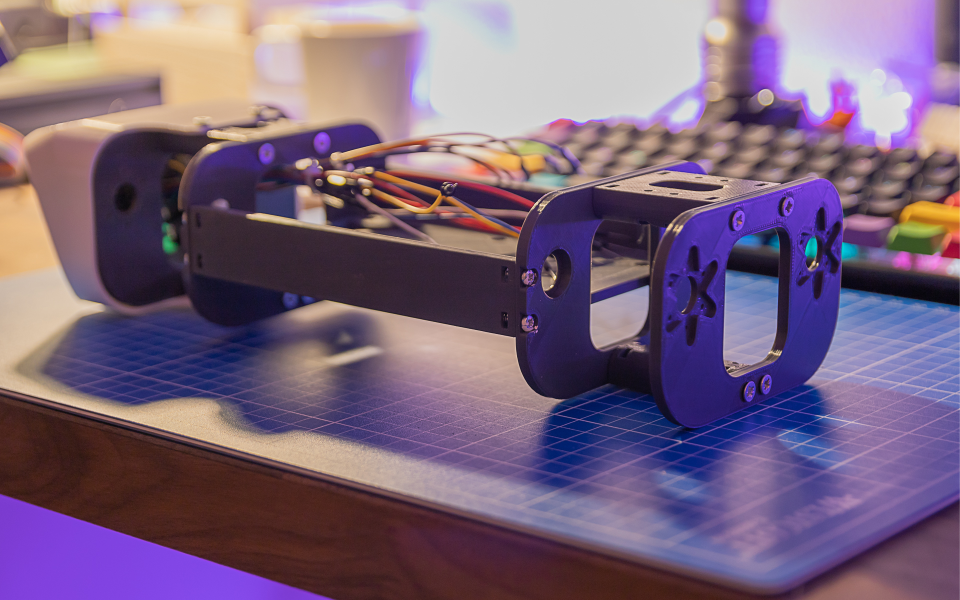

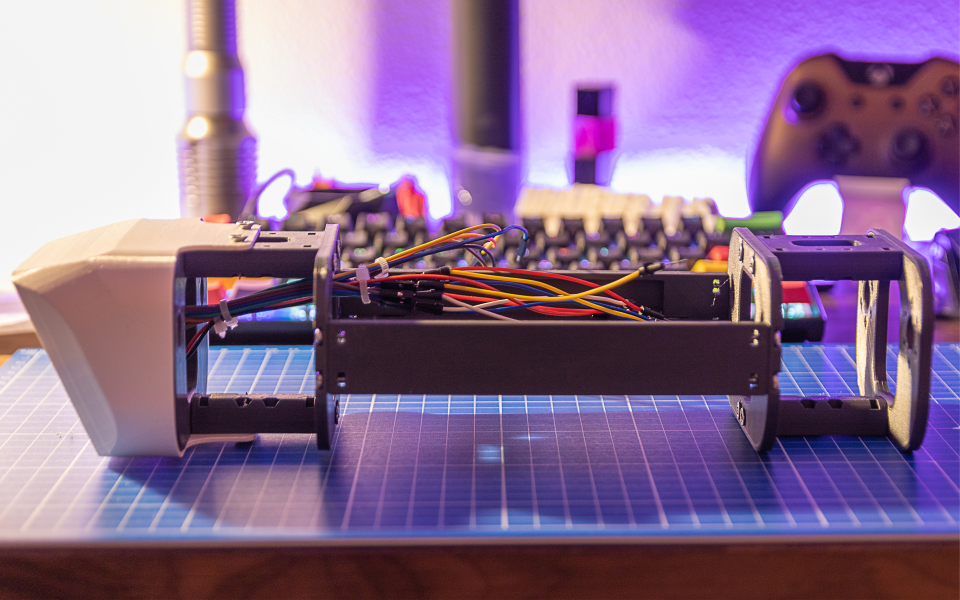

Side view

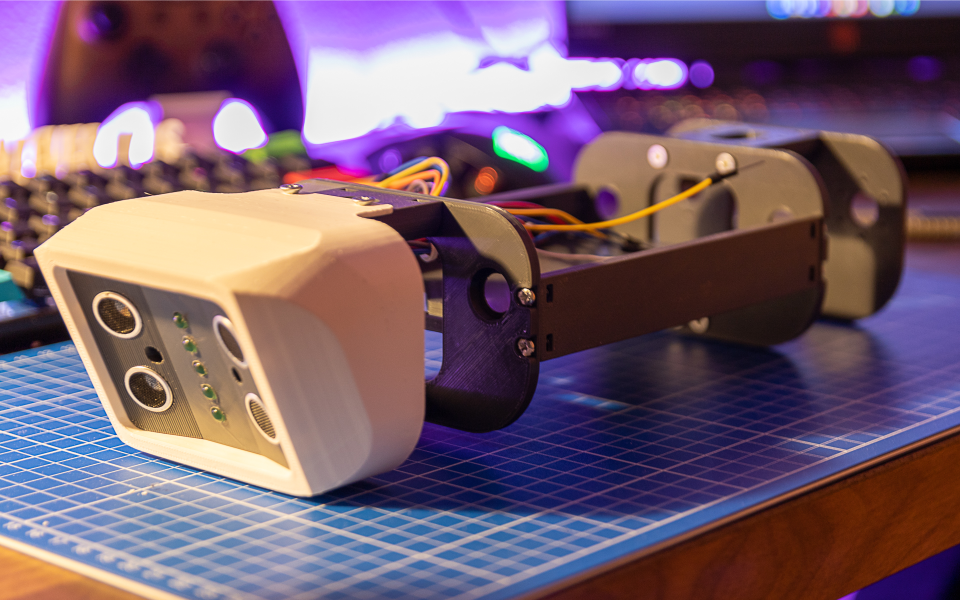

Side view

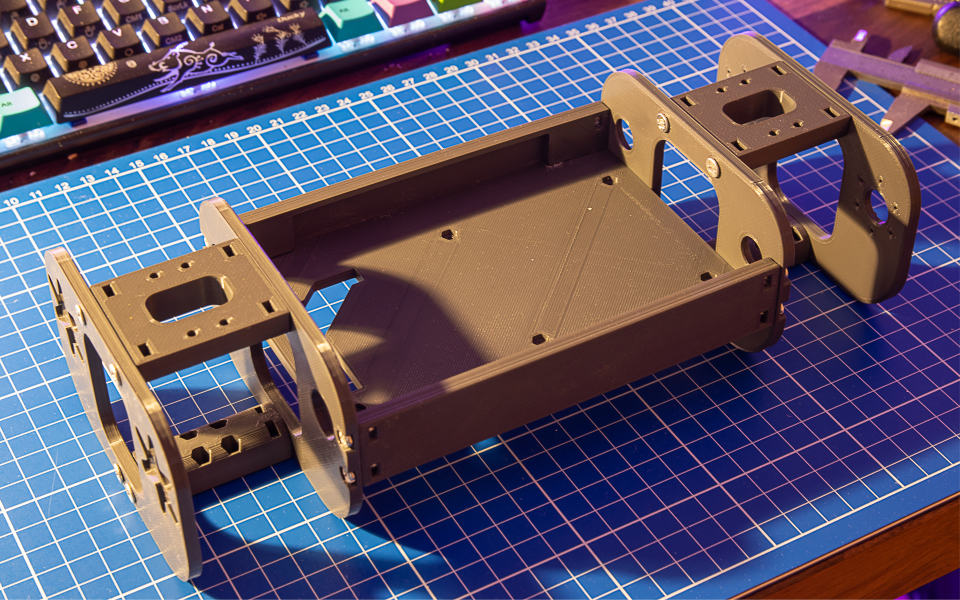

Bare skeleton

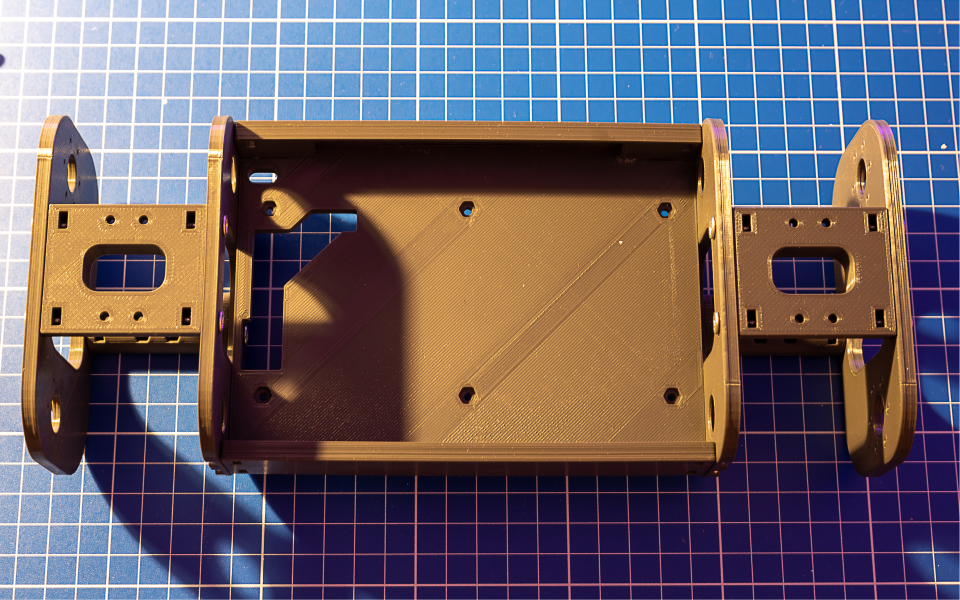

Top view

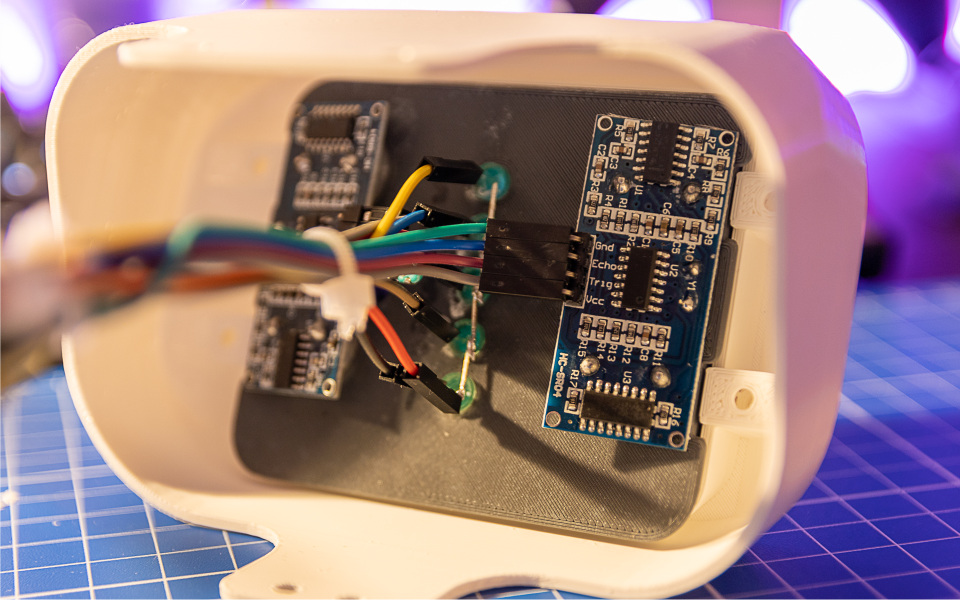

Front electronics

The front end houses two ultrasonic sensors and 5 green LED’s, for now. Eventually the front end will include a (IR?) camera, replacing the LED’s. I’m not quite sure which camera to use yet. I’m sure i will figure it out along the way.
